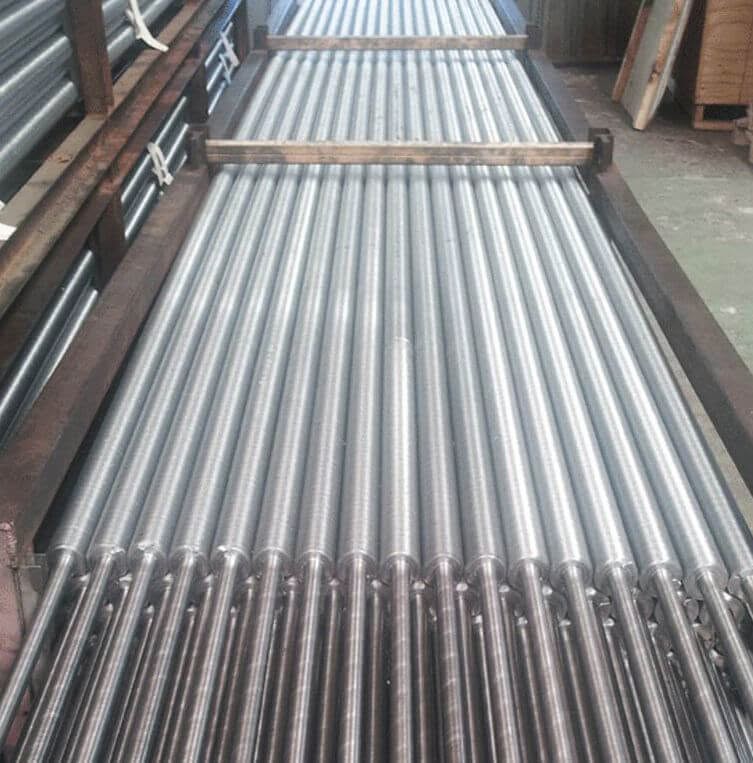

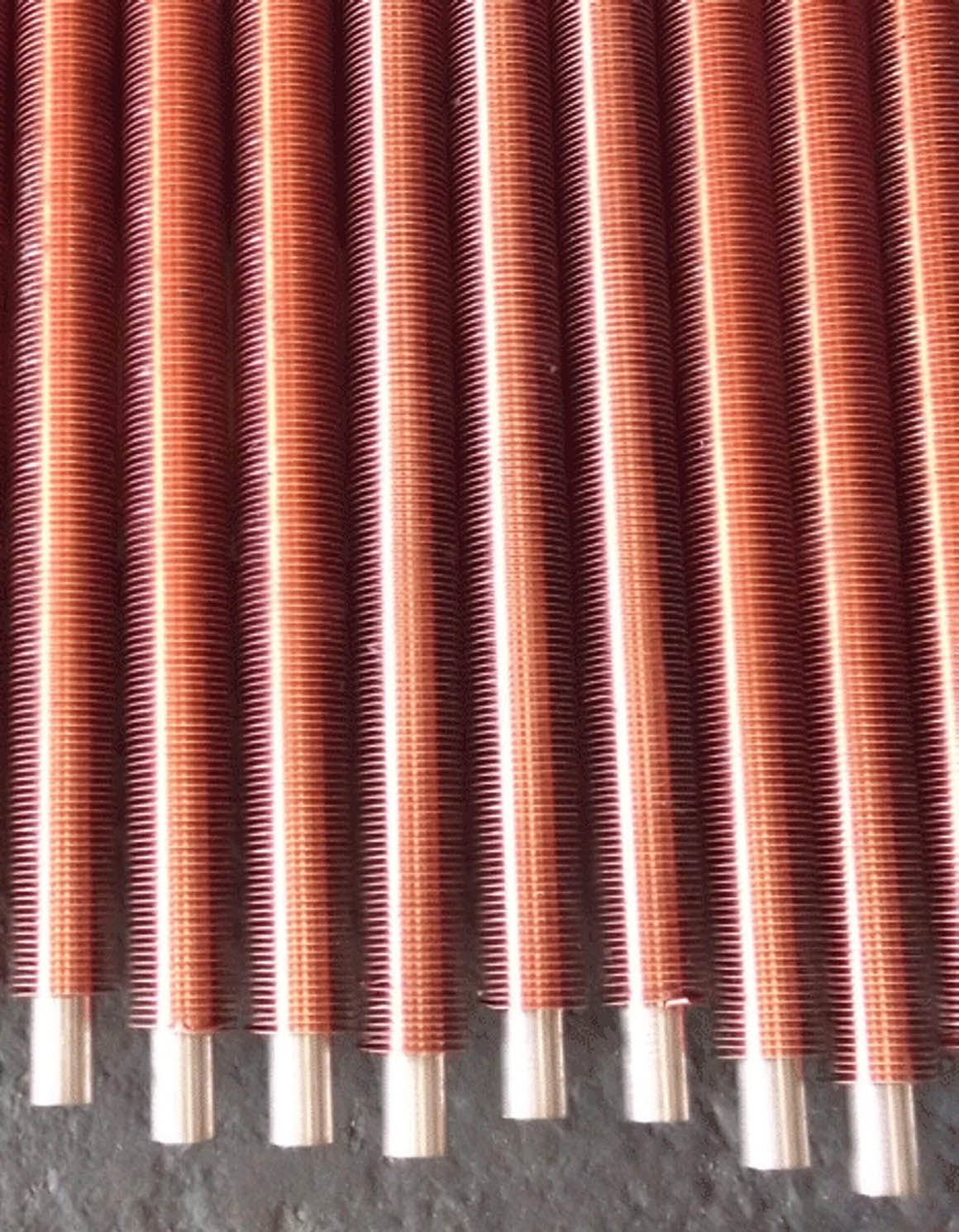

Aluminium, Copper Fin Tube

A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube’s wall.

Metalindo Engineering provide a wide range of fin tubes are used in heat exchangers (air, water and chemically cooled) for various industries such as petroleum, petrochemical, steel, power generation and many more.

Product Range :

• Bare Tube diameter : 15.8mm ~ 50.8mm
• Fin Pitch : 6.5 ~ 12.5 FPI
• Fin height : 10 ~ 16mm
• Fin Tickness : 0.3mm ~ 0.4mm
• Fin material : Aluminium , Copper , SUS 304
• Max. Length : 20 m

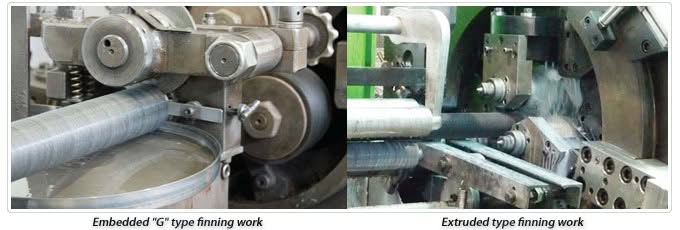

Fin Tube Fin Type

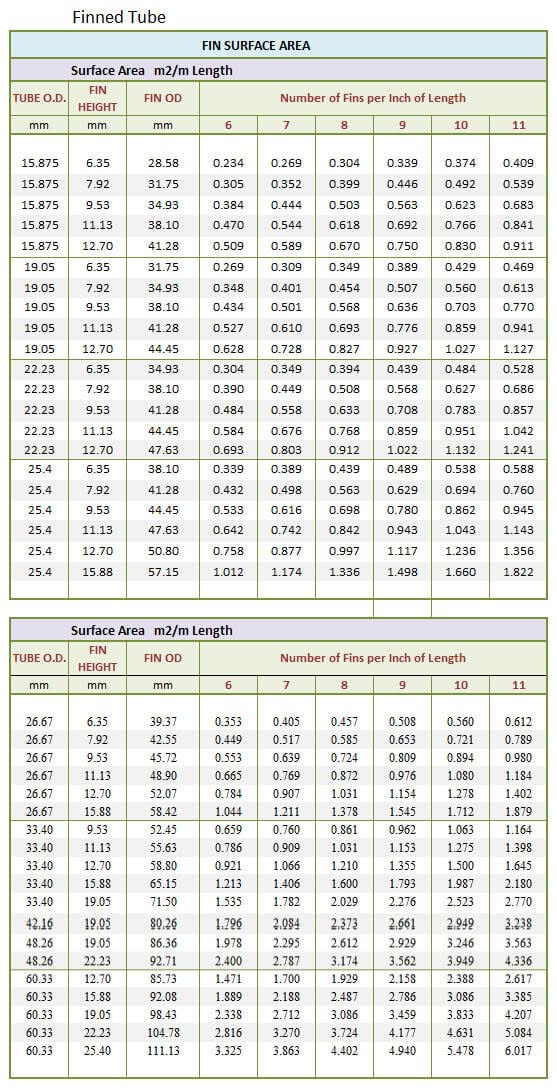

Finned Tube
