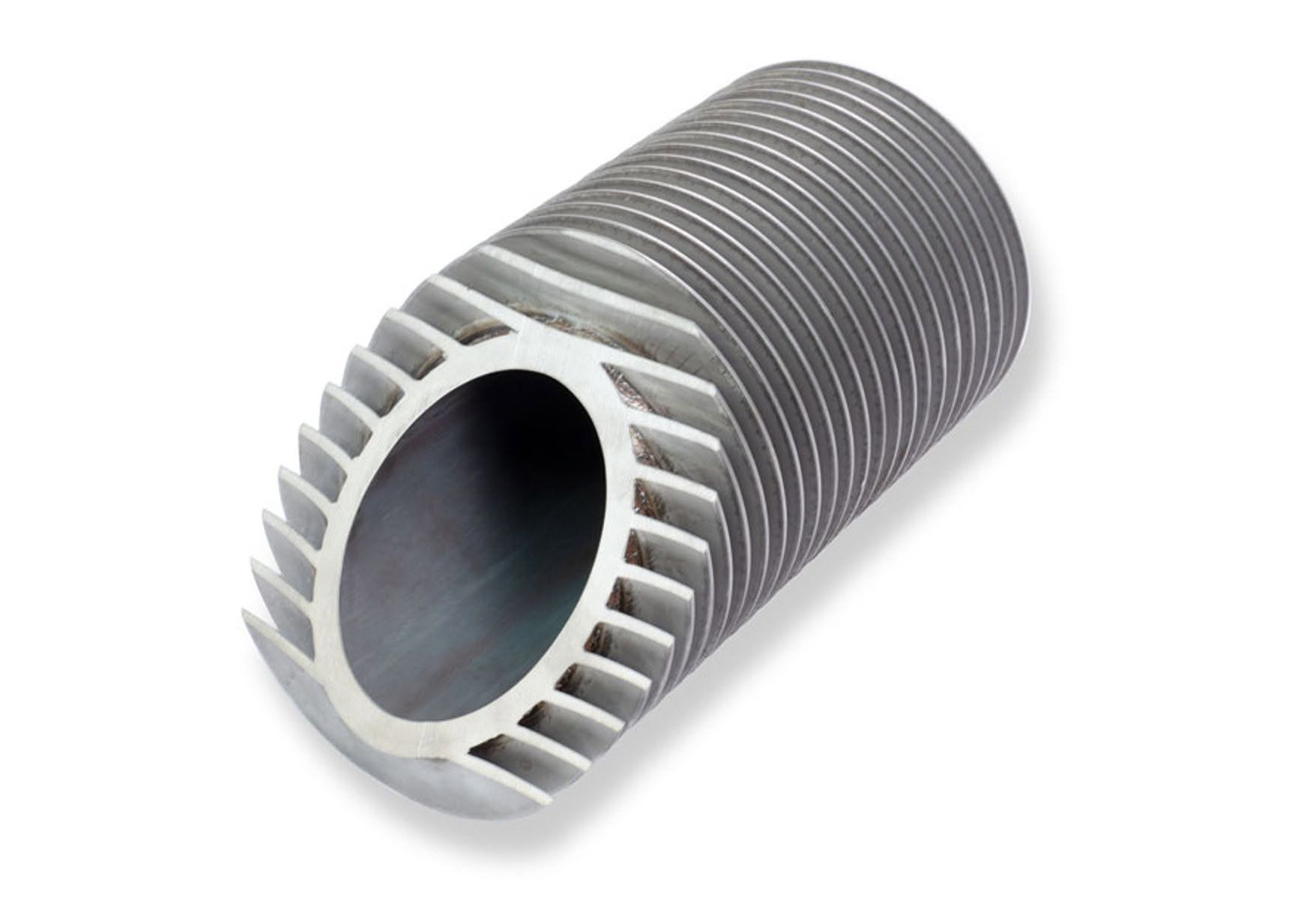

A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube’s wall.

Product Range:

• Bare Tube diameter : 25.4mm ~ 219.1mm
• Fin Pitch : 2 ~ 7 FPI
• Fin height : 13 ~ 32mm
• Fin Tickness : 0.9mm ~ 3mm
• Fin material : Carbon Steel , SUS 304
• Max. Length : 20 m
