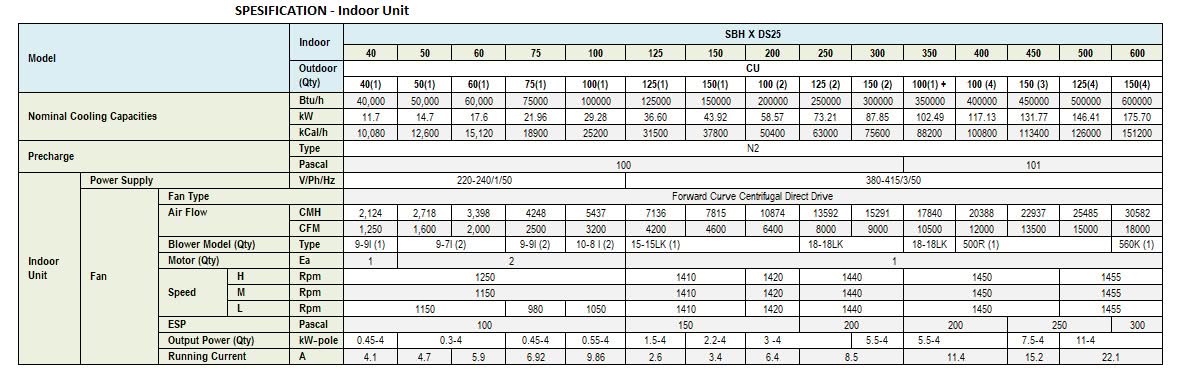

Split Duct Type Air Conditioner

FEATURES

Evergreen Design
Above ceiling ducting system only exposes supply and return grille to view. Unit design is hence evergreen in design and function, and does not fade out‐of‐season against contemporary fashion.

Flexible and Versatile Installation
Supply and return grilles blend well and easily with interior decoration. Multiple zones can be cooled with single unit installation.

Good Indoor Air Quality
Fresh air intake can be easily designed into the system together with good air filtration to offer good indoor air quality.

Excellent Air Distribution
Ducting system offers excellent air distribution and air exchange to each corner of the room giving rise to excellent human comfort cooling.

Flexible Air Supply
Air volume and static may be easily adjusted to requirement and cater to wide applications.

Service Access
Units are designed with service access panels as many as four per unit for smaller units. For bigger units with bigger service panel opening, two service panels per unit may suffice

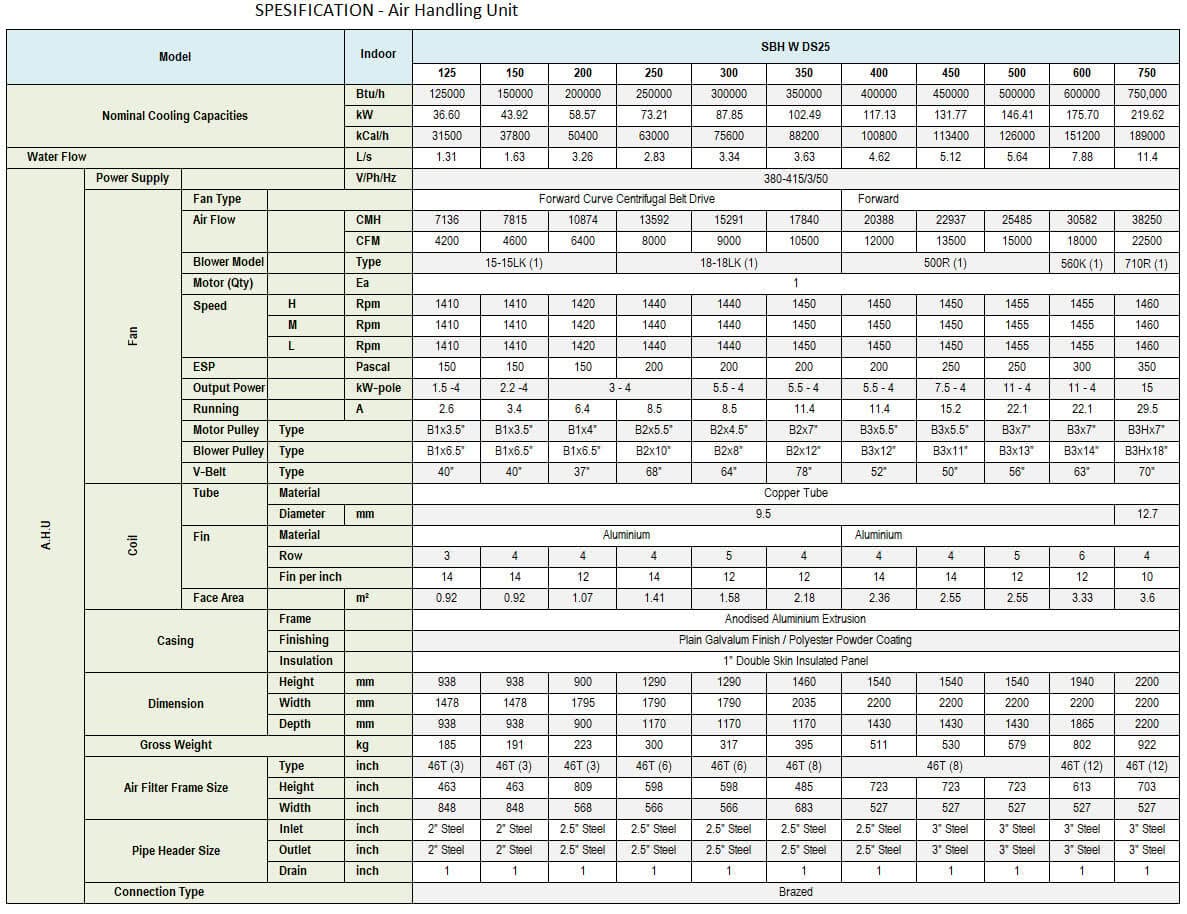

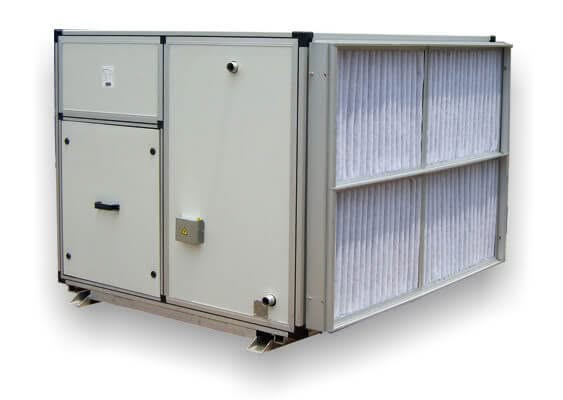

Air Handling Unit ( A.H.U )

Ducted Blower Units for the Belt Drive Chilled Water Series are offered as a standard series or customized to requirements.

The SBH Belt Drive Chilled Water Standard Series covers a range of 125,000 Btu/h to 750,000 Btu/h. Both standard units and customized units are constructed from thermal break systems using high tensile precision extruded anodized aluminum profiles assembled with weather proof nylon grade corner pieces.

Panels are 1” double skin polyurethane insulated panels with excellent rigidity and thermal insulation properties, good sound and vibration insulation and washable internal surface against bacterial growth.

The chilled water coils are offered as standard 3/8” type, or may be reselected for 1/2” type. Anti corrosion options are available as copper fins or pre‐coated and post‐coated aluminium fins.
